TYSUU 4002(202\208) Double face mechanical seal OEM/ODM

Home / Products / Half wave rubber bellows type / TYSUU 4002(202\208) Double face mechanical seal
  • TYSUU 4002(202\208) Double face mechanical seal

TYSUU 4002(202\208) Double face mechanical seal

Operating Limits

Sealing chamber pressure: ≤0Mpa~1 .2Mpa
Seal chamber temperature: -20~80°C(- 30~200°C)
Linear speed: ≤12m/sec.
Medium: water, oil and sewage with PH value of 6.5-8
Uses: clean water pumps, sewage pumps, submersible pumps, chemical pumps and other equipment, used to transport oil,Water and weak corrosive solutions.
  • Double Face
  • Single Spring
  • Unbalanced Seal
  • Rubber Bellows
  • Stationary Ring(Ceramic/SiC/TC)
  • Rotary Ring(Carbon/SiC)
  • Secondary Seal(NBR/NITON)
  • Retainer(SUS304/SUS316)
  • Spring(SUS304/SUS316)
  • Spring Holder(SUS304/SUS316)

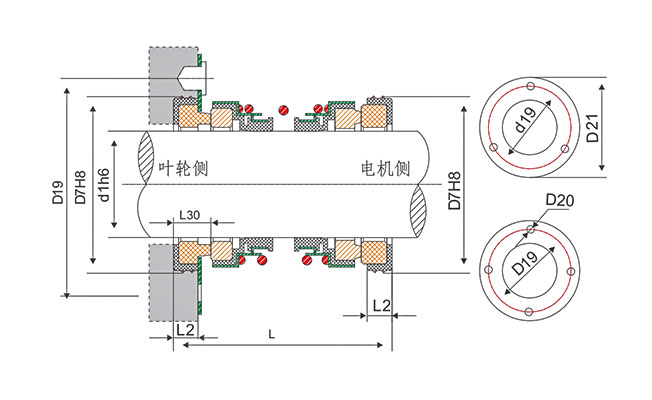

MODEL d1 D7 L L2 L30 D19 D20 D21
TYSUU 4002-12 12 26 38 5 6.5 39.5 M5x3 51
TYSUU 4002-14 14 28 38 5 7.3 39.5 M5x3 51
TYSUU 4002-16 16 28 38 5 7.3 39.5 M5x3 51
TYSUU 4002-18 18 33 40 6 7.8 42 M5x3 62
TYSUU 4002-20 20 35 40 6 7.8 42 M5x3 51
TYSUU 4002-22 22 37 42 6 7.8 42 M5x3 51
TYSUU 4002-25 25 40 48 6 7.8 47 M5x3 56
TYSUU 4002-28 28 43 51 6   47 M5x3 56
TYSUU 4002-30 30 45 51 6 8.5 53 M5x3 62
TYSUU 4002-35 35 50 51 6 8.5 63 M5x3 76
TYSUU 4002-40 40 58 58 8 11 73 M5x4 90
TYSUU 4002-45 45 63 58 8 11 78 M5x6 95
TYSUU 4002-50 50 70 66 8.5 12 83 M5x6 100
TYSUU 4002-55 55 75 70 8.5 12 88 M5x6 105
TYSUU 4002-60 60 80 70 9 12.5 93 M5x6 110
TYSUU 4002-12XJ 12 26 30 5 / / / /
TYSUU 4002-14XJ 14 26 35 5 / / / /
TYSUU 4002-18XJ 18 33 38 6 / / / /
TYSUU 4002-17 17 35 40 6 / / / /

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYSUU 4002(202\208) Double face mechanical seal supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYSUU 4002(202\208) Double face mechanical seal supplier direct from our company. OEM/ODM available.

  • +
