TYS 155 Single spring mechanical seals for water pump seal OEM/ODM

Home / Products / O-ring / TYS 155 Single spring mechanical seals for water pump seal
  • TYS 155 Single spring mechanical seals for water pump seal
  • TYS 155 Single spring mechanical seals for water pump seal
  • TYS 155 Single spring mechanical seals for water pump seal
  • TYS 155 Single spring mechanical seals for water pump seal
  • TYS 155 Single spring mechanical seals for water pump seal
  • TYS 155 Single spring mechanical seals for water pump seal

TYS 155 Single spring mechanical seals for water pump seal

Operating Limits

Annular Seal Pressure: ≤0Mpa~0.8Mpa
Annular Seal Temperature: -20~ 80℃(-30~200℃)
Rotation speed:≤12m/sec
Medium: Water, Oiland PH numerical value of waste water is 6.5-8
Used in clean water pumps and circulation pumps.

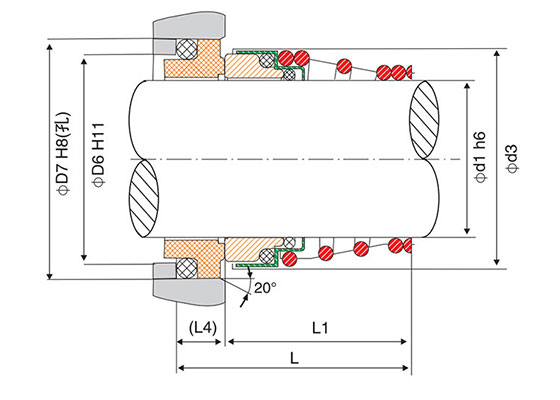

MODEL

d1

d3

D6

D7

L

L1

L4

TYS155-12

12

22.0

16.5

20.6

23.5

18

5.5

TYS155-14

14

25.0

19.0

23.1

28.0

22

6.0

TYS155-15

15

29.0

21.0

26.9

29.0

22

.7.0

TYS155-16

16

29.0

21.0

26.9

30.0

23

7.0

TYS155-17

17

29.0

21.0

26.9

30.0

23

7.0

TYS155-18

18

33.0

25.0

30.9

32.0

24

8.0

TYS155-20

20

33.0

25.0

30.9

33.0

25

8.0

TYS155-22

22

38.0

30.0

35.4

33.0

25

8.0

TYS155-25

25

40.0

33.0

38.2

35.0

27

8.5

TYS155-28

28

46.0

38.0

43.3

38.0

29

9.0

TYS155-30

30

46.0

38.0

43.3

39.0

30

9.0

Product description
