TYS1009、MG1、MG12、MG13 Rubber bellows mechanical seal professional mechanical seal supplier

Operating Limits

Annular Seal Pressure: ≤0Mpa~1.2Mpa
Annular Seal Temperature: -20~80℃(-30~200℃)
Rotation speed: ≤12m/sec
Medium: Water, Oiland PH numerical value of waste wateris 6.5-8
Used in clean water pumps,in-Line pumps and general industrial pumps

Mechanical Seals
Single Face
Single Spring
Unbalanced Seal
Arbitrary Rotation

Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC)
Secondary Seal(NBR/EPDM/VITON)
Retainer(SUS304)
Spring(SUS304)
Spring Holder(SUS304)

Contact form

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is Bergmann MG1, MG12, MG13 Mechanical Seal supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale Bergmann MG1, MG12, MG13 Mechanical Seal direct from our company. OEM/ODM available.

₊
Experience
Employees
_㎡
Plant Area
₊
Model

factory equipment

Our factory has sound facilities and full functions,
which is very suitable for mass production.

Related Products

TYS 1011 Cartridge Mechanical Seal 12mm16mm 22mm for GF CR CRN CRI pump seal

TYS 1006 Mechanical seal John crane type 2100K pump shaft seal

TYS 1008 Pump seal supplier bellow Mechanical Seal MG9 MG912 for water pump

TYS58U Mechanical seals for IMO water pump

TYS 155 Single spring mechanical seals for water pump seal

TYS 301 John crane mechanical seal for chemical pump

TYS 303C Mechanical Seal Auto Cooling Pump Seal

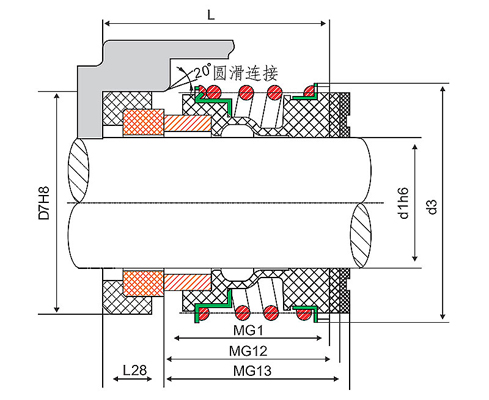

MODEL	d1	d3	D7	L	L28	MG1	MG12	MG13
TYS1009-12	12	25	26	21.5	6.5	/	/	/
TYS1009-14	14	28.5	28	23.5	6.5	/	/	/
TYS1009-16	16	28.5	27	23.5	6.5	17.0	28.5	33.5
TYS1009-18	18	32	33	27	6.5	19.5	30.0	37.5
TYS1009-20	20	37	35	29	6.5	21.5	30.0	37.5
TYS1009-22	22	37	37	29	7.5	21.5	30.0	37.5
TYS1009-25	25	42.5	40	31	7.5	23.0	32.5	42.5
TYS1009-28	28	49	43	34	7.5	26.5	35.0	42.5
TYS1009-30	30	49	45	34	7.5	26.5	35.0	42.5.
TYS1009-35	35	57	50	36	9	28.5	35.0	47.5
TYS1009-40	40	62	58	36	9	30.0	36.0	46.0
TYS1009-45	45	68	63	39	9.5	30.0	36.0	51.0
TYS1009-50	50	74	70	39	11	30.0	38.0	50.5.
TYS1009-55	55	81	75	46	11	35.0	36.5	59.0
TYS1009-60	60	85.5	80	49	11	38.0	41.5	59.0
TYS1009-65	65	93.5	85	51	11.3	40.0	41.5	69.0
TYS1009-70	70	99.5	92	51.5	11.3	40.0	48.7	68.7
TYS1009-75	75	107	97	51.5	12	40.0	48.7	68.7
TYS1009-80	80	112	105	52	14	40.0	48.0	78.0.
TYS1009-85	85	120	110	55	14	41.0	46.0	76.0
TYS1009-90	90	127	115	59	14	45.0	51.0	76.0
TYS1009-95	95	132	120	60	14	46.0	51.0	76.0
TYS1009-100	100	137	125	61	14	47.0	51.0	76.0.
TYS1009-12B	12	25	23	21.5	6.5	15.0	26.0	33.5
TYS1009-14B	14	28.5	25	23.5	6.5	17.0	28.5	33.5
