TYS B2 Mechanical seal for CNP Horizontal single stage centrifugal pump OEM/ODM

Home / Products / Half wave rubber bellows type / TYS B2 Mechanical seal for CNP Horizontal single stage centrifugal pump
  • TYS B2 Mechanical seal for CNP Horizontal single stage centrifugal pump
  • TYS B2 Mechanical seal for CNP Horizontal single stage centrifugal pump

TYS B2 Mechanical seal for CNP Horizontal single stage centrifugal pump

Operating Limits

Sealing chamber pressure: ≤1.4Mpa
Seal chamber temperature: -20~80°C (-30-180°C)
Linear speed: ≤13m/sec
Uses: clean water pumps, sewage pumps, submersible pumps, chemical pumps and other equipment, used to transport oil,Water and weak corrosive solutions.
  • Double Face
  • Single Spring
  • Unbalanced Seal
  • Rubber Bellows
Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC)
Secondary Seal(NBR/EPDM/VITON)
Retainer(SUS304)
Spring(SUS304)
Spring Holder(SUS304)

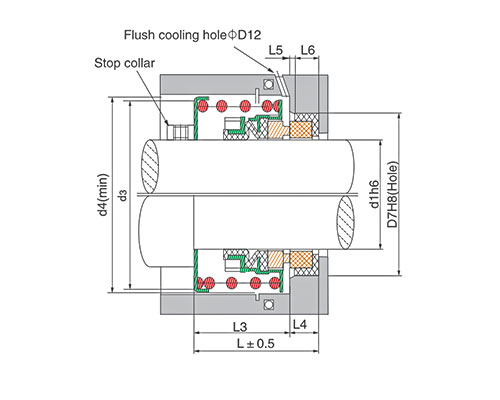

MODEL d1 d3 d4 D7 D12 L L3 L4 L5 L6
16 16 34 37 30 5 33 25 8 1.2 6
18 18 36.8 40 32 5 33 25 8 2 6
20 20 38.8 42 34 5 33 25 8 2 6
B2-22 22 41.5 45 36 5 33 25 8 2 6
B2-25 25 44.8 48 39 5 34 26 8 2 6
B2-28 28 48.5 52 43 5 34 26 8 2 6
B2-30 30 52 55 48 5 34 26 8 2 7
B2-35 35 57 60 53 5 40 30 10 2 8
B2-40 40 67 70 58 5 44 34 10 2 8
B2-45 45 73 76 63 5 46 36 10 2 8
B2-50 50 79 81 68 8 51 41 10 2 8
B2-55 55 84 87 73 8 53 41 12 2.5 10
B2-60 60 90 95 79 8 53 41 12 2.5 10
B2-65 65 98.5 104 86 8 61 49 12 2.5 10
B2-70 70 103.5 109 91 8 64 52 12 2.5 10
B2-75 75 110.5 116 96 8 64 52 12 2.5 10
B2-80 80 120 125 105 11 70 56 14 3 12
B2-85 85 125 130 110 11 70 56 14 3 12
B2-90 90 132 137 115 11 70 56 14 3 12
TYSB2-95 95 137 142 120 11 70 56 14 3 12
TYSB2-100 100 144 149 125 11 70 62 14 3 12



MODEL d1 d3 d4 D7 D12 L L3 L4 L5 L6
TYSB2-3/8" 9.52 28 32 24.6 5 33.7 25 8.7 1.5 6
TYSB2-1/2" 12.7 32 35 27.8 5 33.7 25 8.7 1.5 6
TYSB2-5/8" 15.87 34 39 30.95 5 35.3 25 10.3 1.5 6
TYSB2-3/4" 19.05 38.8 43 34.15 5 35.3 25 10.3 2 7
TYSB2-7/8" 22.22 41.5 46 37.3 5 35.3 25 10.3 2 7
TYSB2-1" 25.4 44.8 50 40.5 5 35.3 25 10.3 2 7
TYSB2-1 1/8" 28.57 48.5 59 47.65 5 44.9 33 11.9 2 7
TYSB2-1 1/4" 31.75 57 62 50.8 5 44.9 33 11.9 2 7
TYSB2-1 3/8" 34.92 57 66 54 5 44.9 33 11.9 2 7
TYSB2-1 " 38.1 67 70 57.15 5 44.9 33 11.9 2 7
TYSB2-1 5/8" 41.27 67 74 60.35 5 44.9 33 11.9 2 7
TYSB2-1 3/4" 44.45 73 77 63.5 5 52.9 41 11.9 2 7
TYSB2-1 7/8" 47.62 73 81 66.7 5 52.9 41 11.9 2 7
TYSB2-2" 50.8 79 85 69.85 8 54.5 41 13.5 2.5 10
TYSB2-2 1/8" 53.97 84 88 73.05 8 54.5 41 13.5 2.5 10
TYSB2-2 1/4" 57.15 84 91 76.2 8 54.5 41 13.5 2.5 10
TYSB2-2 3/8" 60.32 90 94 79.4 8 54.5 41 13.5 2.5 10
TYSB2-2 1/2" 63.5 94 97 82.55 8 54.5 41 13.5 2.5 10

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYS B2 Mechanical seal for CNP Horizontal single stage centrifugal pump supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYS B2 Mechanical seal for CNP Horizontal single stage centrifugal pump supplier direct from our company. OEM/ODM available.

  • +

    Experience

  • Employees

  • ㎡

    Plant Area

  • +

    Model

MORE
factory equipment

Our factory has sound facilities and full functions,
which is very suitable for mass production.
